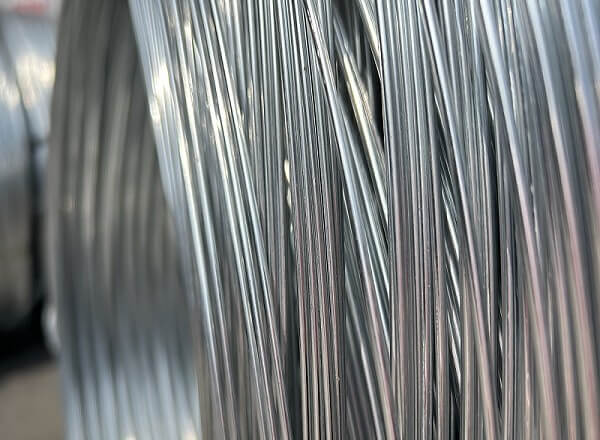

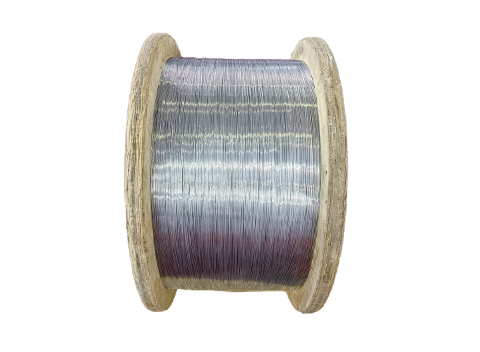

Galvanized Steel Wire

-Manufactured from high-quality high-carbon steel rods and galvanized through hot-dip or electroplating processes to form a uniform zinc coating, effectively preventing corrosion while ensuring excellent mechanical and processing properties.

-Widely used in the power transmission and communication industries.

-Annual capacity 60,000 tons, meeting diverse customer needs.

Send Message

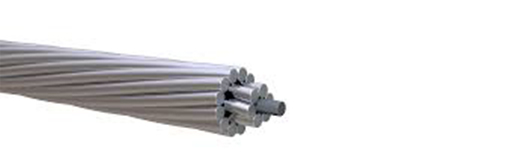

ACSR

OPTICAL CABLE

ASTM B498

Specified Diameter	Permissible Variation		Ultimate Tensile Strengthm,min		Stress at 1% Extension, min		Zinc Coating, min
Specified Diameter	Plus	Minus	Class A	Class C	Class A	Class C	Class A	Class C
mm	mm	mm	MPa	MPa	MPa	MPa	g/m²	g/m²
1.27-1.52	0.038	0.025	1450	1310	1310	1170	183	549
1.53-1.90	0.038	0.025	1450	1310	1310	1170	198	594
1.91-2.28	0.051	0.051	1450	1310	1310	1170	214	642
2.29-2.64	0.051	0.051	1410	1280	1280	1140	229	687
2.65-3.04	0.051	0.051	1410	1280	1280	1140	244	732
3.05-3.55	0.076	0.051	1410	1280	1240	1100	259	777
3.56-4.57	0.102	0.076	1380	1240	1170	1070	274	822
4.58-4.82	0.102	0.076	1380	1240	1170	1070	305	915

Note :

Tensile Strength Grade: 1570, 1670, 1770, 1870, 1960, 2160.

Reference standards: BS 4565, EN 50189, ASTM B498, GB/T 3428, IEC 888 Regular.

Nominal Diameter	Tolerance	Min. Zinc Coating Weight
Nominal Diameter	Tolerance	AB	C	E
(mm)	(mm)	(g/m²)	(g/m²)	(g/m²)
0.35≤ d <0.40	±0.01	-	25	12
0.40≤ d <0.50	±0.01	60	30	15
0.50≤ d <0.60	±0.01	70	35	15
0.60≤ d <0.80	±0.01	80	40	15
0.80≤ d <1.00	±0.02	90	50	18
1.00≤ d <1.20	±0.02	110	60	18
1.20≤ d <1.40	±0.02	120	60	18
1.40≤ d <1.60	±0.02	130	70	30
1.60≤ d <1.80	±0.03	130	70	30
1.80≤ d <2.00	±0.03	155	80	30
2.00≤ d <2.20	±0.03	155	80	40
2.20≤ d <2.50	±0.03	155	80	40
2.50≤ d <2.80	±0.03	155	90	45
2.30≤ d <3.00	±0.03	165	90	45

Product Advantages:

-The galvanized steel wire surface is free from overlapping marks, scratches, fractures, flattening, or hard bends.

-Features a uniform, continuous, and bright zinc coating with no peeling.

-Round in appearance, dimensionally stable, with high tensile strength and a high elastic modulus.

Product Application:

-Optical cable

-ACSR

-Communication cables

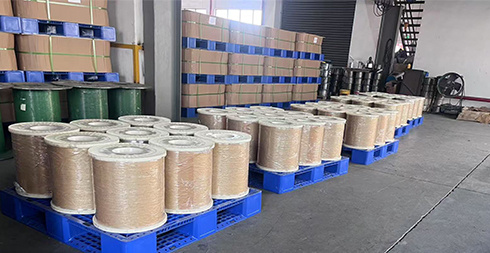

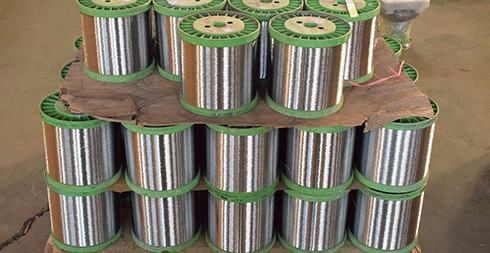

Packaging Display:

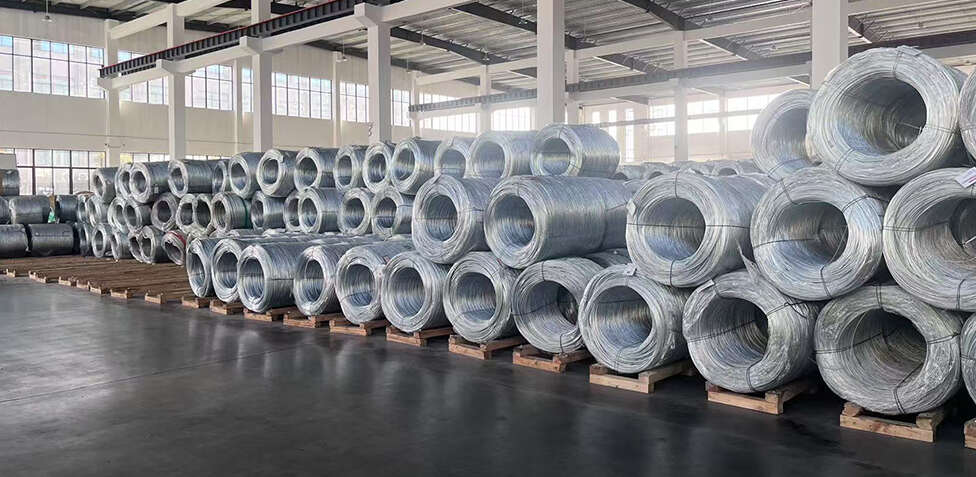

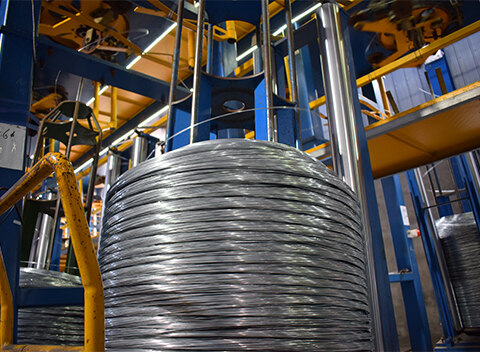

Workshop display:

Galvanized-Steel-Wire15

Send Message

Related Products

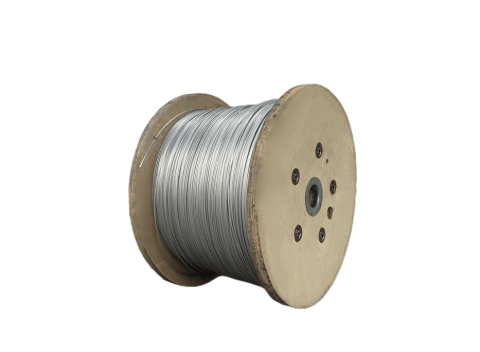

Aluminum-Clad Steel Wire/ Alumoweld
